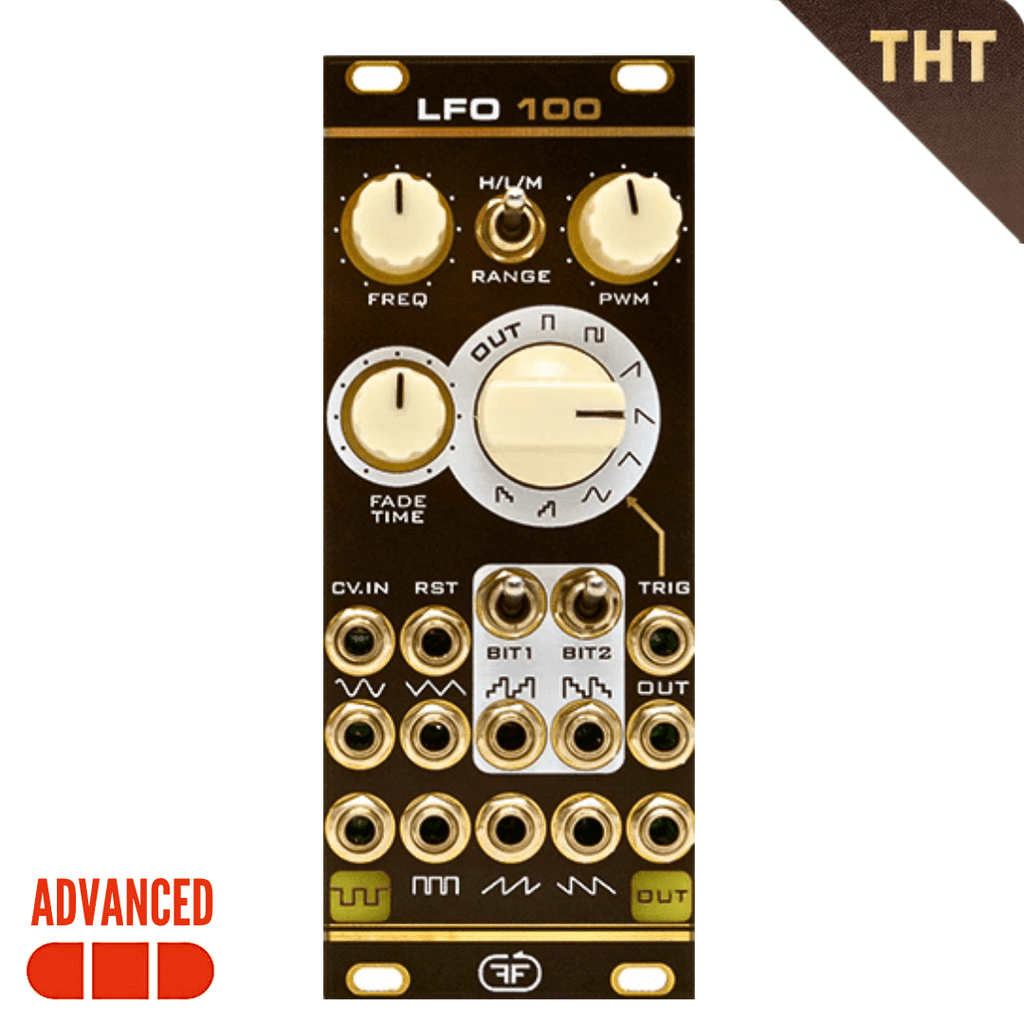

LFO100 THT Full KIT
Complex analogue LFO from a vintage Japanese modular system!
We injected some steroids in this LFO and the results are lot of features.
Not only you can use individually the 8 waveform outputs, but you can use the
alternative two linked outputs for which you can select any of the waveforms.
This alternative output has a VCA so you can fade in the LFO signal in a
defined duration with a potentiometer.
The stairs like waveforms can be changed from 16steps, 8steps, 4steps or mangled.
All of these are seasoned with cv control and waveform reset.
Tech specs:
- 10HP width
- 35mm depth behind front panel including the power connector
- SWITCH FREQUENCY RANGE switch:
LOW - 0.07Hz (14sec) - 1Hz
MEDIUM - 0.3Hz (3sec) - 4Hz
HIGH - 3Hz - 33Hz
- power consumption +12V 30mA , -12V 10mA

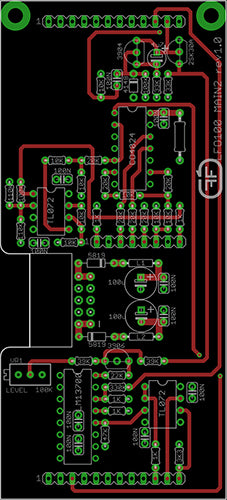

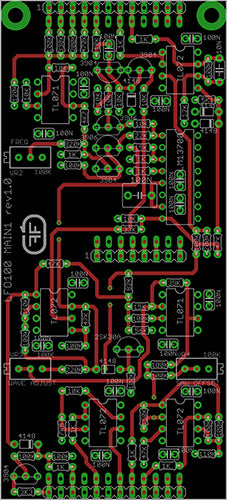

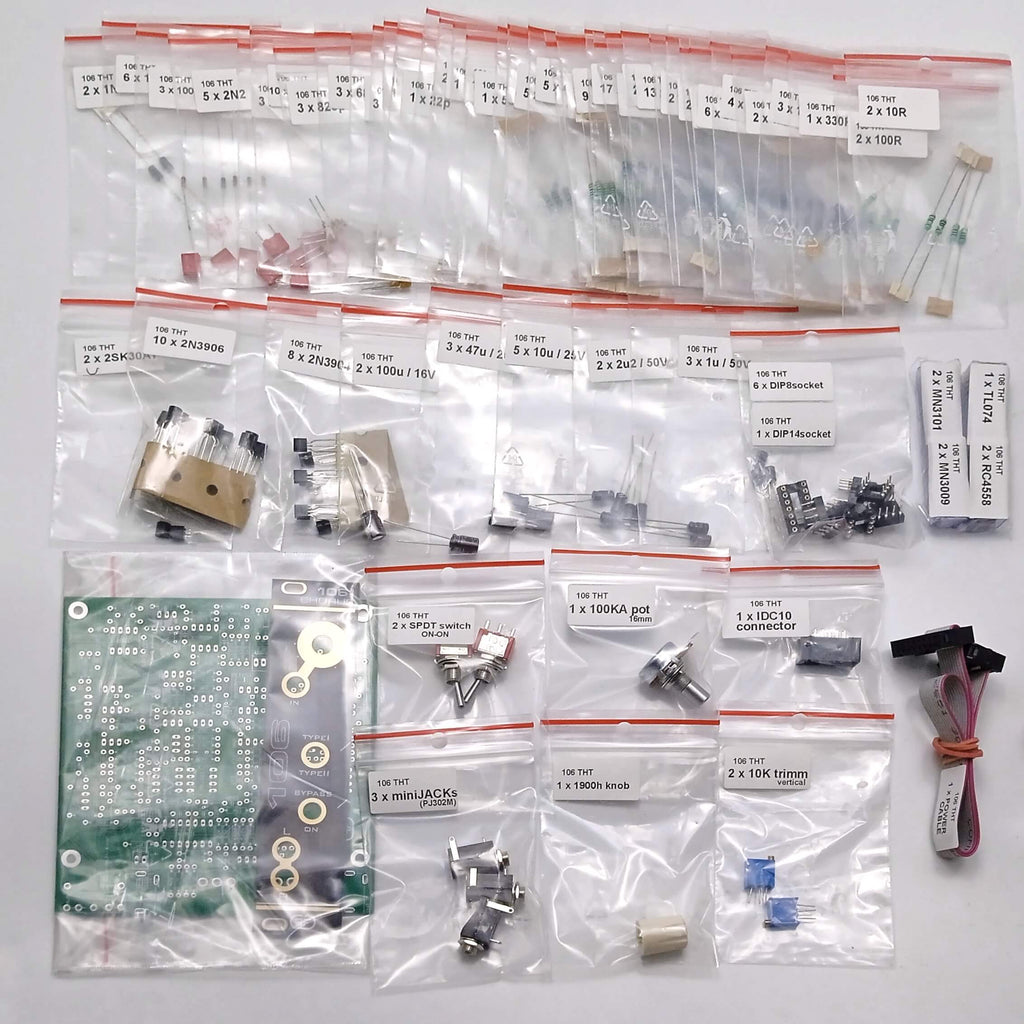

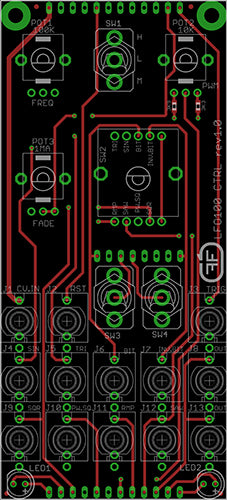

- 3 x PCBs + 2 x Light Stoppers + Front Panel + All the parts needed
