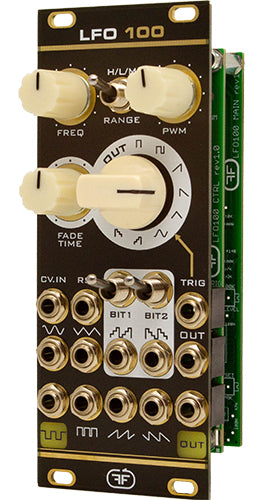

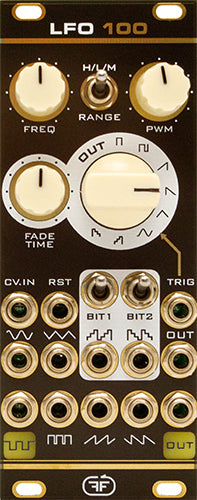

LFO100

Complex analogue LFO from a vintage Japanese modular system!

We injected some steroids in this LFO and the results are lot of features.
Not only you can use individually the 8 waveform outputs, but you can use the
alternative two linked outputs for which you can select any of the waveforms.
This alternative output has a VCA so you can fade in the LFO signal in a
defined duration with a potentiometer.
The stairs like waveforms can be changed from 16steps, 8steps, 4steps or mangled.
All of these are seasoned with cv control and waveform reset.

Tech specs:

- 10HP width
- 35mm depth behind front panel including the power connector
- FREQUENCY RANGE SWITCH:
        LOW   -  0.07Hz (14sec) - 1Hz
        MEDIUM  -  0.3Hz (3sec) - 4Hz
        HIGH  -  3Hz  - 33Hz
- power consumption +12V 30mA , -12V 10mA

▼Download - User Manual
